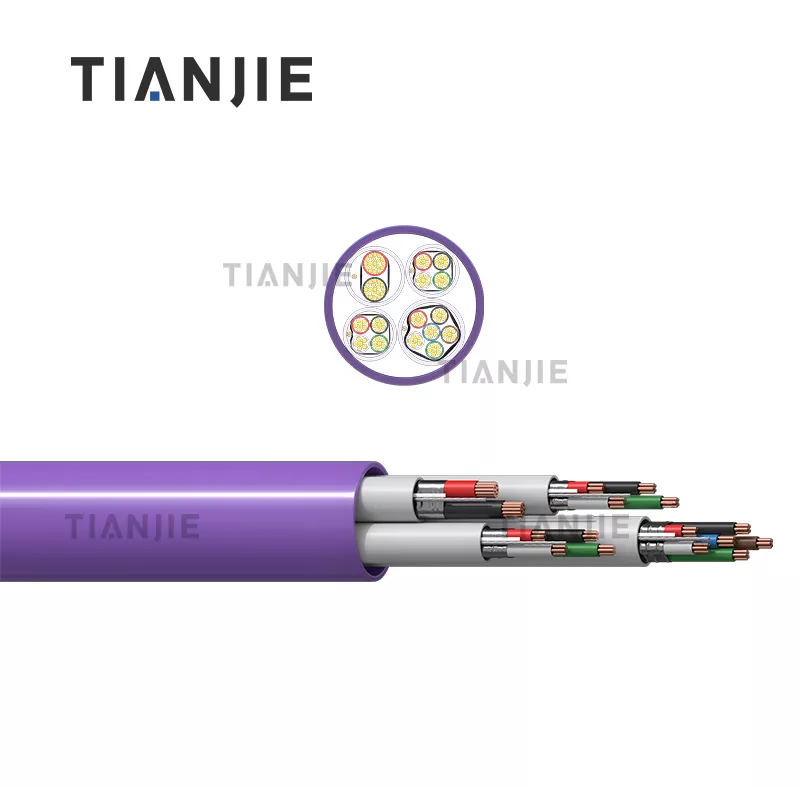

Access Control Cable
Application areas：door contacts, and other request-for-exit (REX) devices
multi-function access control system or door beams assembled in factories as well as card readers, locks.

Main Features：simple and quick installation due to the integration of four-component access control, communication and control
power supply; fastest field identification with individual components color coded and their designed functions printed.
Structure and Technical Parameters
Conductors oxygen free bare copper,tin-coated copper Insulators PVC、LSZH、XLPE、TPE、PE、PP Shielding no shield, total shield Sheaths PVC、LSZH、XLPE、TPU、PE Working Voltage 300V Working Temperature -40℃～+105℃ Environmental Performance RoHS2.0、REACH Flame Retardants IEC60332-1、IEC60332-3、VW-1 Other Options cold resistant,water proof,fire resistant,UV resistant,oil resistant


Specification List

Resource Download List

998912 Access Control Composite Cables   6Cx22AWG+4Cx22AWG+2Cx18AWG Specification

D‍‍ownload

998913 Access Control Composite Cables   6Cx22AWG+4Cx22AWG+2Cx18AWG Specification

D‍‍ownload

998914 Access Control Composite Cables   8Cx22AWG+6Cx22AWG+2Cx18AWG Specification

D‍‍ownload

Access Control Cable   2x4Cx18AWG+2Px24AWG+4Cx22AWG Specification

   Download

Access Control Cable 4Cx18AWG+6Cx22AWGShielded+2Cx22AWG+4Cx22AWG CMR Specification

D‍‍ownload

Access Control Cable   4Cx18AWG+6Cx22AWGShielded+2Cx22AWG+4Cx22AWG CMP ES Specification

   Download

Access Control Cable   4Cx18AWG+6Cx22AWGShielded+2Cx22AWG+4Cx22AWG CMP Specification

   Download

Access Control Cable 4Cx18AWG+6Cx22AWGShielded+2Cx22AWG+4Cx22AWG CMR Specification

D‍‍ownload

Access Control Cable   4Cx18AWG+6Cx22AWGShielded+2Cx22AWG+4Cx22AWG CMR ES Specification

   Download

Access Control Cable   4Cx18AWG+6Cx22AWGShielded+2Cx22AWG+4Cx22AWG CMR Specification

D‍‍ownload

HAAA01 Access Control Cable   4Cx18AWG+3Px22AWG+2Cx22AWG+4Cx22AWG CMP ES A1 Specification

   Download

HAAA03 Access Control Cable   4Cx18AWG+3Px22AWG+2Cx22AWG+4Cx22AWG CMR ES A1 Specification

   Download

Access Control Cable 22-6 Shielded + 22-4 + 22-2 + 18-4 PVC CMP Yellow Specification

   Download
