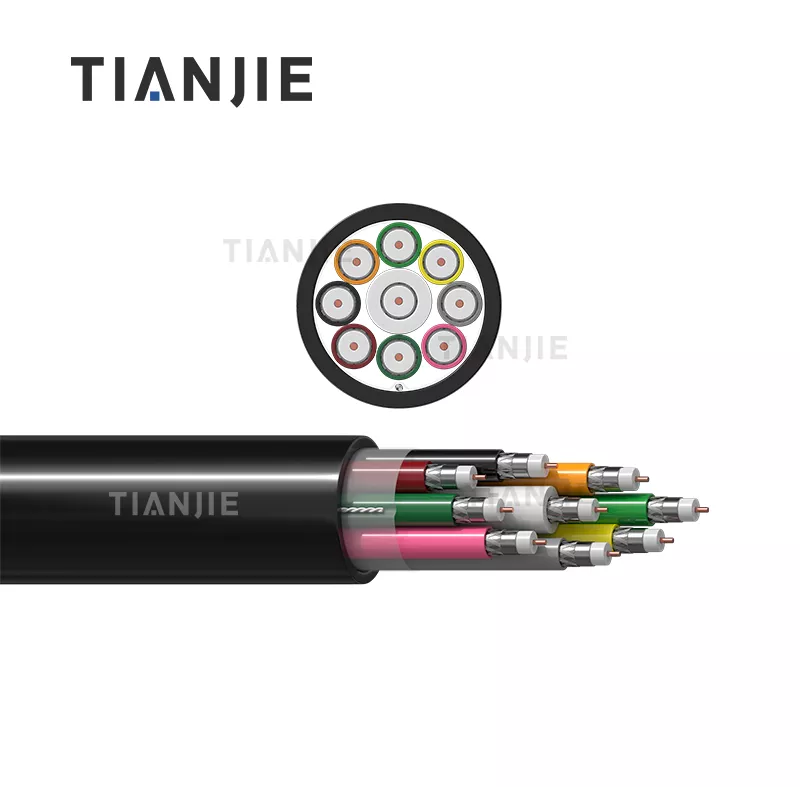

Composite Cable of Stranded Coaxial
Application areas：indoor and outdoor distribution systems designed for sound signals, analogue anddigital broadcast television signals.
Main Features：low dielectric loss, low capacitance, UV resistance, high flame retardant efficiency easy installation and strong interference resistance due to its general integration with coaxial components.
Structure and Technical Parameters
Conductors oxygen free bare copper,tin-coated copper,silver-coated coppercopper-clad steel ,copper-clad aluminium
Insulators Foam pe 、PE
Shielding bi-shield,tri-shield,quad-shield
Sheaths PVC、LSZH
Ripcord fiber ropes
Working Voltage 300V
Working Temperature -40℃～+90℃
Environmental Performance RoHS2.0、REACH
Resistance 75Ω、50Ω
Certification UL、CPR
Flame Retardants IEC60332-1、IEC60332-3、VW-1、CMG、CM、CMR、CMP
Other Options cold resistant,water proof,fire resistant,UV resistant,flexible,oil resistant

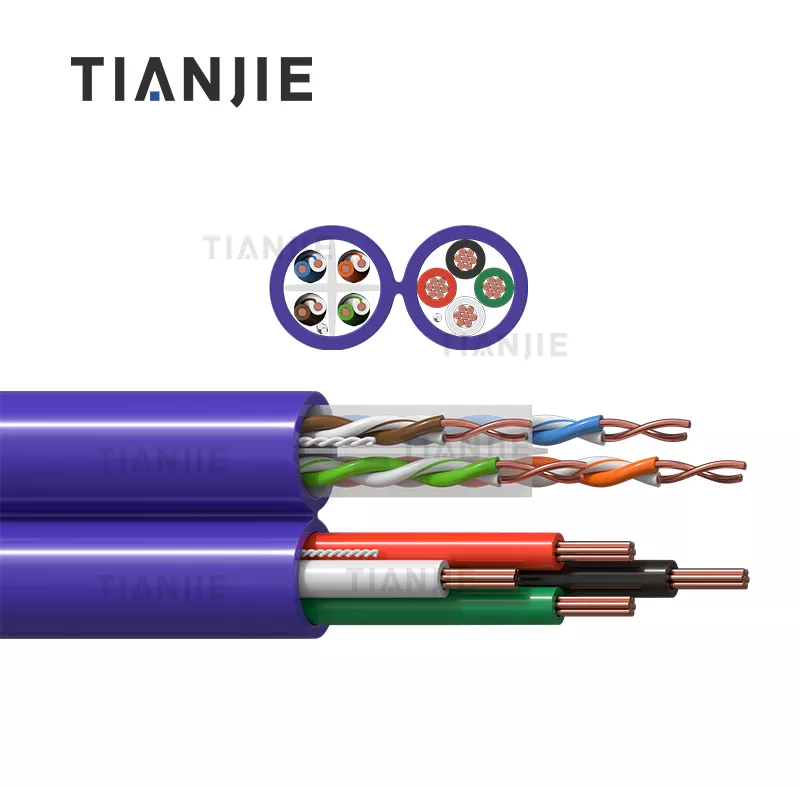

Integrated Wiring Cables
Product Catalog
Specification List | Resource Download List |
MINI RG59 8X BUNDLE CABLE Specification |
