Composite Cable of Stranded Coaxial

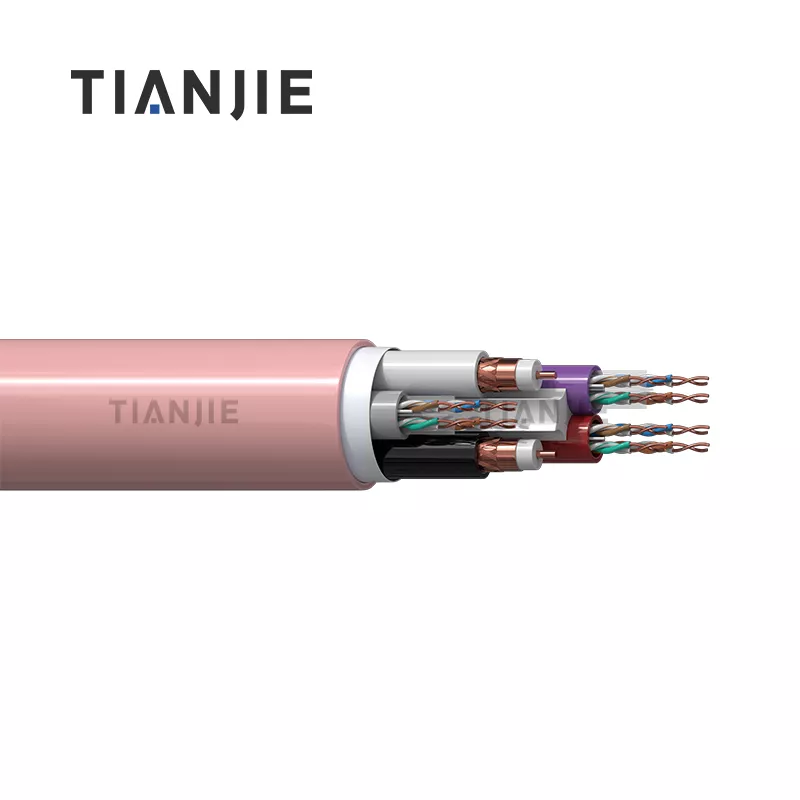

Composite Cable of Coaxial and LAN Cable
Composite Cable of Coaxial and LAN Cable
Application areas：horizontal cabling in LAN where video, audio, signal, control, etc. are combined together.
Main Features：equipped with a compact structure and easy to install, suitable for monitoring wiring, network cloth, and weak current security projects.

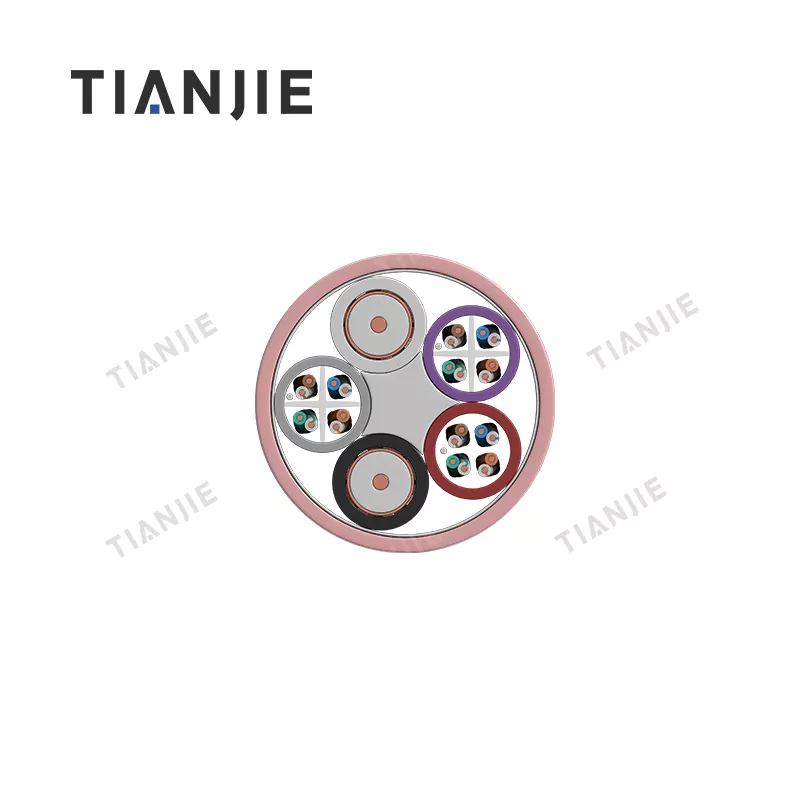

Structure and Technical Parameters
Conductors oxygen free bare copper ,tin-coated copper,silver-coated copper,copper-clad steel ,copper-clad aluminium
Insulators Foam pe 、PE
Shielding no shield, separate shield, total shield
Under Sheaths PVC、LSZH
Ripcord fiber ropes
Sheaths PVC、LSZH
Working Voltage 300V
Working Temperature -40℃～+90℃
Environmental Performance RoHS2.0、REACH
Resistance 75Ω、50Ω、100Ω
Certification UL、CPR
Flame Retardants IEC60332-1、IEC60332-3、VW-1、CMG、CM、CMR、CMP
Other Options cold resistant,water proof,fire resistant,UV resistant,oil resistant
